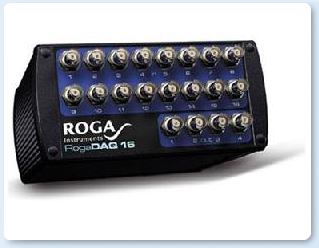

RogaDAQ 16 Specification
USB front end with integrated IEPE - supply, 16 analog inputs, 4 analog outputs, 16 bit resolution, 2 counter inputs, 24 bit digital I/O and fast USB 2.0 interface.
Description
Analog Inputs
Number of inputs | 16 |
Input Impedance | 1MOhm differential |
Analog bandwidth | 0 – 20 kHz (DC mode); |
ADC sample rate | 500/400kHz |
Resolution | 16 bit |
Input voltage ranges | ±0.125, ±1.25, ±2.5, ±5, ±10V |
IEPE sensor supply | 4 mA/24V |
Maximum input voltage | ±40V |
Gain accuracy | 0.2% typical |
Analog Outputs
Number of outputs | 4 |
Sample rate | 100kHz/ch. |
Resolution | 16 bit |
Settling time | ±20V / 10µ, ±1V / 1µ |
Output ranges | 0 – 10V, ±10V |
Maximum current | 5mA |
Impedance | 0.2Ohm |
Digital Outputs
Number of inputs / outputs | 24 |
Type | LVCMOS, 5V tolerant |
Maximum current | 2.5mA |
Number of counters | 2 |
Resolution | 24 bit |
Modes | up/down, frequency, period |
PWM channels | 1 |
Resolution | 24 bit |
Frequency range | 2Hz – 2.5MHz |
Incremental counters | 24 bit incremental |
Interpolation | 1 / 2 / 4 |
Maximum frequency | 20MHz |
Dimensions | 180mm (w) x 167mm (d) x 80mm (h) |
Weight | Approx. 2kg |
Power Supply | Adapter 100V – 230V AC/ |
