Data Recorder Software
RogaREC software is designed for many different test and measurement devices which allow using such Front End system as a PC based Data Recorder; RogaREC works also with any PC sound cards.
The main feature of the RogaREC is the simulation of a recorder, so that a user manual is not necessar
RogaREC supports the analog input channels for example of any sound cards, Plug.n.DAQ Lite and RogaDAQ2

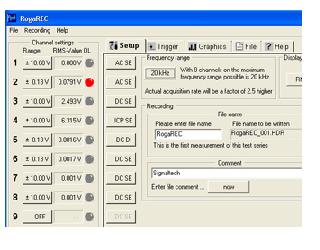

RogaDAQ16 range input settings and IEPE (ICP ®) sensor supply can be selected for each channel individually.
The measurement bandwidth is indicated in Hz or kHz, according to the T&M measurement hardware.
The display allows changing between Bar graph and wave form (oscilloscope) view.

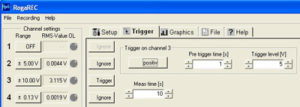

Cannel overload indicator for each channel and Pre & Post Trigger, recording time function roundup the RogaREC product.
The channel data’s are stored in the TEAC TAFFmat file format.
NVH Data Recorder – Package Offers
16-XLR-NVH
16 IEPE sensor inputs + 2 AC
Measuring range 6.7 Volt Peak
24 bit simultaneous
Antialiasing filter
10 Hz to 20 kHz per channel
NVH Analyzer Pro
- 16-XLR-NVH Datasheet
- Price : 6800 €
4-XLR-NVH
4 IEPE sensor inputs
Measuring range 6.7 Volt Peak
24 bit simultaneous
Antialiasing filter
10 Hz to 40 kHz per channel
NVH Analyzer Pro
- NVH Analyzer Pro
- Price : 5100 €
2-XLR-NVH
2 IEPE sensor inputs
Measuring range 2.1 Volt
24 bit simultaneous
Antialiasing filter
10 Hz to 80 kHz per channel
NVH Analyzer Pro
- NVH Analyzer Pro
- Price : 4700 €
