Accelerometer with vibration analysis Software and ADC

Special offer price

Vibration Sensor Set

Scope of delivery:

KS78C10; IEPE accelerometer | 10 mV/g
B001-100N; Holding magnet insulating type 100 Newton holding force
009-UNF-BNC-1,5; Low noise cable; 1,5 m; UNF 10-32 to BNC; 120 °C; D2,1
Plug.n.DAQ Lite; 2 channel IEPE USB accelerometer interface
NVH Analyzer Lite; Vibrometer and FFT Analysis Software for Win 10 & Win 11

Price: 980 € + VAT

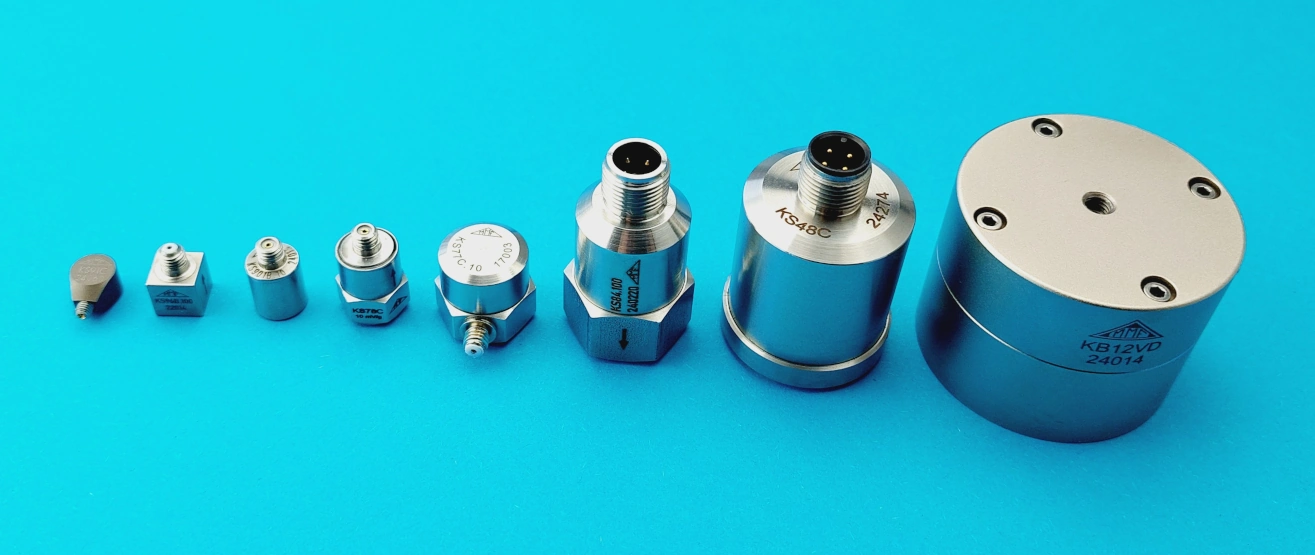

KS Series
Accelerometers

ROGA-Instruments provides a broad range of IEPE accelerometers for General applications, Seismic measurements, High acceleration and shock, Light test objects, Triaxial measurements and Industrial applications.

The range of high quality accelerometers reaches from:

minature accelerometers (accelerometer sensor)
lightweight accelerometers (accelerometer sensor)
triaxial accelerometers (accelerometer sensor)
shock accelerometers (accelerometer sensor)
IEPE impedance head
airborne accelerometers (accelerometer sensor)
charge mode accelerometers (accelerometer sensor)
triaxial seat pad

Low Cost

IEPE accelerometer
10 mV/g or 100 mV/g
Mass 5.2 grams
0.35 Hz to 28 kHz

Price: € 180

Low Noise

IEPE accelerometer
10 mV/g or 100 mV/g
Mass 23 grams
0.13 Hz to 33 kHz

Price: € 378

Subminiature

IEPE accelerometer
10 mV/g
Mass 1.3 grams
0.3 Hz to 37 kHz

Price: € 582

Triaxial

3D IEPE accelerometer
10 mV/g or 100 mV/g
Mass 6.2 grams
0.15 Hz to 22 kHz

Price: € 1620

Model	Description	Price
KS901B10 KS901B100	Low-cost IEPE accelerometers for integration into machines and instruments Frequency response 0.35 Hz-28 kHz Sensitivity 10 mV/g or 100 mV/g Mass 5.2 grams Measuring range 500 g Download KS901B1x PDF	180 €
KS76C KS77C	• General purpose shear-type accelerometer • Two sensitivity versions • Low sensitivity to temperature transients • Low influence of base bending effects • IEPE compatible output allows long cables • High linear band width up to 37 kHz • Low noise, high resolution • Sturdy stainless steel housing • M5 mounting thread in base	378 €
KS78C10 or KS78C100	KS78C10 \| 100; IEPE accelerometer Contains digital memory for sensor data (TEDS) Frequency response 0.65 Hz-23 kHz Sensitivity 10 mV/g or 100 mV/g Mass 11.2 grams Measuring range: 500 g or 50 g	264 €
KS81B	• Rugged stainless steel case • With insulated case avoiding ground loop problems • KS81B with double shielding for best EMI protection • KS81B with M12 connector for easier assembly in spite of protection grade • IP67 – improved replacement for obsolete MIL-C-5015 connectors • Attractive prices	288 €
KS96B10 KS96B100	KS96B10 \| KS96B100 IEPE miniature accelerometer Frequency response 0.2 Hz-18 kHz Sensitivity 10 mV/g \| 100 mV/g Mass 3.2 g Measuring range ± 500 or ± 60 g	450 €
KS97B10 KS97B100	KS97B10 \| KS97B100 IEPE miniature accelerometer Frequency response 0.2 Hz-18 kHz Sensitivity 10 mV/g \| 100 mV/g Mass 3.2 g Measuring range ± 500 or ± 60 g	450 €
KS98B10 KS98B100	KS98B10 \| KS98B100 IEPE miniature accelerometer Frequency response 0.2 Hz-18 kHz Sensitivity 10 mV/g \| 100 mV/g Mass 3.2 g Measuring range ± 500 or ± 60 g	490 €
KS91C/01	Miniature Accelerometer For lightweight targets – KS91C in subminiature version – KS91C with IEPE voltage output – KS93 with charge output – High dynamic range – High resonant frequency – Low temperature dependence – Pluggable cables – KS93 with M3 mounting thread in base – KS91C with insulated bottom against ground loops Frequency response 0.3 Hz-37 kHz Sensitivity 10 mV/g Mass 1.3 grams Measuring range 600 g Transducer with accessory case; contents: cable 009-SUB-BNC-1.5, adhesive wax 002, instant adhesive 038, removal tool 039, identification sheet	582 €
KS48C	High Sensitivity Accelerometer @ 1000 mV/g • Suited for seismic measurement and building vibration particularly at low frequencies • Extremely sensitive piezo system provides excellent resolution and lowest noise • KS48C with IEPE voltage output • KS48C with protection grade IP67	630 €
KB12VD	High Sensitivity Accelerometer @ 10 V/g Suitable for seismic measurements and structural investigations at low frequencies – Highly sensitive sensor system without internal amplification – thus excellent resolution and lowest noise – KB12VD with particularly good sensitivity/ mass ratio – KB12VD with air-damped resonance and overload protection by friction coupling – KB12VD and KS48C with IEPE voltage output Frequency response 0.05 Hz – 260 Hz Sensitivity 10 000 mV/g Mass 150 grams Measuring range ± 0.6 g	797 €

Model	Picture	Triaxial Accelerometer Price	Euro
KS903B10/01 or KS903B100/01		Small dimensions • Excellent phase response • High resolution • Low temperature coefficient • Includes electronic data sheet (TEDS) • Suitable for modal and structural analysis Download KS903B1xx PDF	1620 €
KS813B Set		Inustrial Triaxial Accelerometer Set ● Rugged industrial design ● Protection grade IP67 ● Insulated base against ground loops ● Trough hole for easy attachment • 088-B718G-B711-5: Cable with connector Binder 711, 5 m, for adapter 034 • 034-B711f-BNC: Adapter from connector Binder 711 to 3 BNC connectors	1398 €
