Vibration Calibrator VC-01A

Vibration calibrator VC-01A is a small, portable calibration instrument. It provides a stable vibration reference source that can conveniently and accurately calibrate accelerometers, velocity sensors and displacement sensors, and also test the measurement system consisting of sensors to determine whether the sensors and the entire measurement system are working properly. The instrument is small, lightweight and easy to use.

VC-01A has a sinusoidal signal generator, a power amplifier, an electrodynamic shaker and a highly stable standard reference accelerometer that provides a high-quality closed-loop vibration reference source.

When the device is in operation, the internal signal source generates a standard sinusoidal signal at 80 Hz, 159.2 Hz or 1 kHz, which is driven by a power amplifier to drive the shaker so that the transducer under test is at a standard acceleration level of 0.98, 4.91, 9.81 g rms.

The reference signal can also be used for velocity and displacement, at 0.98, 4.91, 9.81 mm/s rms and 0.98, 4.91, 9.81 μm rms respectively.

Principle of operation:

The VC-01A portable vibration calibrator utilizes a built-in standard accelerometer and an external probe mounted back-to-back to test by the comparison method, using closed-loop control to provide a highly stable vibration reference source.

VC-01A

Vibration Calibrator
Features:

  • Portable, built-in rechargeable battery
  • Small size and light weight
  • Acceleration speed and displacement calibration
  • Quick and easy field calibration of vibration measurement and recording systems
  • High-precision operation at 4 frequencies and 3 accelerations

Technical parameters:

  • Operating frequency (±0.5%): 80Hz, 159.2Hz, 1kHz
  • Acceleration output (m/s2 rms): 0.98, 4.91, 9.81
  • Velocity output (mm/s rms): 0.98, 4.91, 9.81
  • Deflection power (μm rms): 0.98, 4.91, 9.81
  • Distortion: ≤5%
  • Accuracy: ≤5%
  • Maximum load: 200 grams
  • Automatic switch-off time: ~50 seconds
  • Temperature range: 0 ~ + 55 °C
  • Built-in rechargeable battery: 9V rechargeable battery
  • Battery life: 1.5 hours
  • Charging time: 15 hours
  • Warm-up time: <5 seconds
  • Size: Φ52×152 mm
  • Weight: 500 grams
  • Mounting thread: M5 (internal thread)
  • Mounting torque: 1.0 Nm
Scope of delivery:

  • VC-01A calibrator, battery, calibration certificate, case

Vibration Calibrator VC-01

The VC-01 vibration calibrator is a small and light hand-held calibrator for quick checking of acceleration and vibration sensors.

With the VC-01 vibration calibrator, sensors up to a total weight of 70g can be checked for function and accuracy very easily.

Regardless of the mass of the test object, the acceleration at the vibrating table of the calibrator is kept constant via an integrated reference sensor.

The signal emitted by the device under test can be measured using an RMS voltmeter, an oscilloscope or an FFT analyzer.

VC-01

Vibration Calibrator

Specifications:

  • Vibration acceleration 10m / s²
  • Vibration frequency 159.2 Hz
  • Waveform sine
  • Accuracy 5%
  • Distortion less than 3%
  • Sensor mass 0..120g
  • Battery power supply 9V block
  • Automatic shutdown after 50s

Characteristics:

  • Integrated reference sensor with high accuracy
  • constant vibration acceleration through microprocessor control
  • suitable for sensors with 0..120g mass
  • Glue sensor attachment or with M5 grub screw
  • easy to use
  • robust design
  • Housing aluminum, black
  • Power button with operating and undervoltage display
  • Dimensions ø 52 x 148mm
  • Weight 525g including battery
  • Temperature range 0..40 °C
  • LED display for normal operation (green) and under voltage (orange)

Scope of delivery:

calibrator, battery, calibration certificate

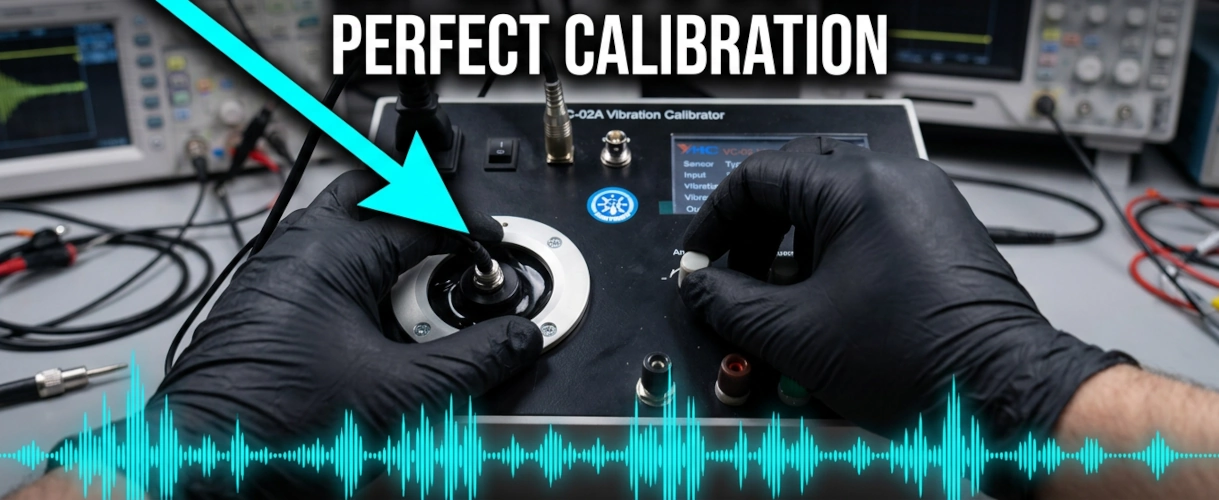

Vibration Calibrator VC-02

Vibration calibrator system for all vibration sensors

Vibration calibrator VC-02 is an advanced tool specifically designed to test and calibrate various types of vibration transducers and measurement systems. Whether it’s for industrial or laboratory use, the VC-02 is the perfect solution.

Its portability makes it convenient for on-site testing without having to send the equipment back to the lab. With continuous adjustments of frequency and vibration amplitude, users can fine-tune their vibration measurement tools with ease.

With a wide vibration frequency range of 10 Hz to 10 kHz and an adjustable vibration amplitude of 0 to ±5g RMS, the VC-02 is suitable for most vibration measurement applications.

Additionally, the VC-02 provides direct readings with its LCD display, making it easy to track and monitor measurements. Furthermore, the VC-02 offers multiple input modes including Charge, IEPE, Voltage, 4-20mA, and Eddy, ensuring that it can accommodate different sensor or system types.

Technical Data:

  • Vibration frequency range: 10 Hz -10 kHz
  • Vibration amplitude: 0 – 5g RMS
  • Input Mode: Charge / IEPE / Voltage / 4-20mA / Eddy
  • Dimensions: 300×140×85mm
  • Weight: 6.5kg
  • Load range: ≤ 200 grams (1g)
  • Supply:220V 50Hz/110V 60Hz
  • PC interface: USB
  • The automatic calibration of the vibration sensor can be completed by test and control software.
  • Sensitivity, amplitude/frequency response, non-linearity.
