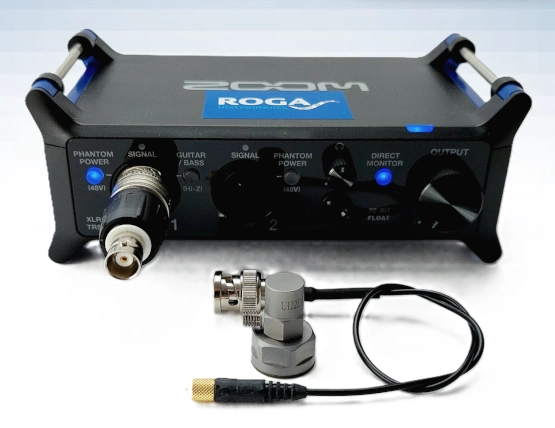

AV14N-SET

Grinding Vibration

AV14 Set Scope of delivery:

  • 1-Channel IEPE Vibration Sensor DAQ Box
  • USB-C – AC Adapter, 100-240 VAC / 5 VDC
  • U122.6 Accelerometer
  • B001-100N Holding magnet insulating type – 100 Newton holding force
  • 009-UNF-BNC-1.5; Accelerometer Sensor Cable 1.5 meter
Monitoring Grinding Vibrations

Human hearing is characterized by an outstanding dynamic range and high acoustic resolution.

In specialized manufacturing processes within the grinding industry, the initial contact between the workpiece and the grinding wheel is a critical moment.

The AV14N-SET delivers top-tier performance in detecting this initial contact.

Its predecessor, the AV14-SET, has been successfully used in the grinding industry for over 20 years.

In addition to a headphone jack, the successor model—the AV14N-SET—features a USB-C audio interface for processing 32-bit ADC data on a PC.

With a sampling rate of 192 kHz and an analog frequency bandwidth of 10 Hz to 95 kHz, the system is equipped for the digital future.

System Features:

  • Piezoelectric accelerometer input
  • Adjustable headphones output
  • Preamplifier
  • Function with additional BNC output
  • USB-C USB Audio PC Interface – 192 kHz Sampling Rate

Machine noise localization with  ES12 Electronic Stethoscope.

It is an advanced technology system designed to help you locate sources of sound quickly and accurately.

The system consists of a directional microphone and an accelerometer that work together seamlessly to detect even subtle vibrations and sounds.

You do not need any special knowledge or training to use this product as it is intuitive and easy to use.

The ES12 is great for diagnosing mechanical problems in engines, HVAC systems and other machinery.

It also comes with a comfortable and robust headset that allows hands-free operation and gives you more flexibility and control.

With the ES12 Electronic Stethoscope, you can quickly and efficiently pinpoint the source of unwanted noise, saving you time and money on maintenance and repairs.

ES12-SET

Electronic Stethoscope

Machine Noise Localization System Features:

  • Electret condenser microphone Input
  • Piezoelectric accelerometer input
  • Adjustable headphones output
  • Preamplifier
  • Function with additional BNC output

ES12 Set Scope of delivery:

  • 1-Channel Monitor Amplifier and Charge Amplifier AV14
  • AC Adapter, 100-240 VAC / 12 VDC
  • 1/4″ Directional Microphone MI 10
  • 222A100 Accelerometer
  • B001-100N Holding magnet insulating type – 100 Newton holding force
  • 009-UNF-BNC-1.5; Accelerometer Sensor Cable 1.5 meter
  • Headphone KH 10
  • Manual

MI10 directional microphone – Features

  • Elegant matt black plastic housing and gooseneck
  • Built-in windscreen
  • Suppression of background noise
  • Functional, small and handy design

KH10 Dynamic headphones

The KH10 is a closed dynamic headphone designed for critical music and sound monitoring in an open environment. The headphones have a frequency response of 5 Hz to 30 kHz and are tuned to the diffuse sound field.

The single-sided 3 m connection cable is equipped with an inline volume control for optimal adjustment. It is equipped with a gold-plated mini stereo jack plug (3.5 mm) with 1/4″ adapter (6.35 mm) and is therefore suitable for use with almost all headphone amplifiers.

The robust headband construction has been reinforced to give the headphones a very secure fit, coupled with mechanical reliability. Soft, easy-to-clean ear pads and adjustable, sliding ear cups ensure a high level of listening comfort even during prolonged use.

Features

  • Closed diffuse-field headphones
  • Excellent attenuation of ambient noise (better than 35 dB A)
  • Excellent audio quality with high sound pressure level (105 dB)
  • Robust spring steel headband
  • Single-sided cable (straight cable, 3 m long) with integrated volume control
  • Gold-plated jack plug (3.5 mm) and adapter (6.35 mm)
