Microphones for high sound pressure levels
RG-50HL
- 1/4″ IEPE microphone
- WS2F according to IEC 61094-4
- free field
- 5Hz to 20kHz
- up to 170 dB
- with IEPE preamp
Price: €1125 + VAT

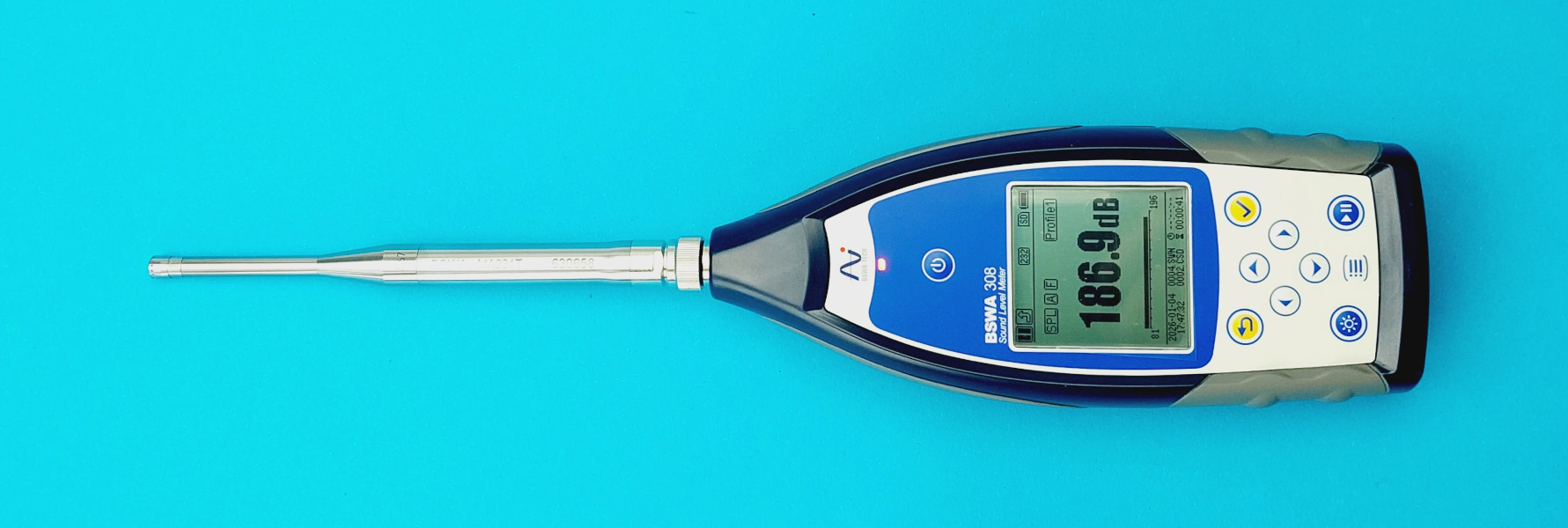

MK342 E + MV310 set
- 1/4″ microphone capsule
- WS3P according to IEC 61094-4
- Pressure
- 3.5Hz to 70kHz
- 60dB(A) to 186dB
- pre-polarized
Price: 1480 € + VAT
MK 301 E + A 67 + iSV1611
- 1/4″ microphone capsule
- WS3F according to IEC 61094-4
- free field
- 5Hz to 80kHz
- 35dBA to 168dB
- pre-polarized
MK 342 E + A 67 + iSV1611
- 1/4″ microphone capsule
- WS3P according to IEC 61094-4
- 3.5Hz to 70kHz
- 60dBA to 186dB
- pre-polarized

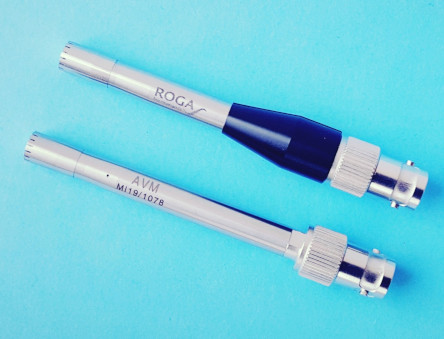

The ¼” electret microphone RG-50HL is a free field microphone with integrated electronics designed for the IEPE 4 mA constant current supply at 24 Volt DC.
Microphone sensitivity with 1.0 mV/Pa = up to 170 dB peak.
The membrane is protected against mechanical
damage by a protective grid.
- Type 1 according to IEC 61094-4
- IEPE sensor supply => 24 to 30 Volt @ 4 mA
- Bias: 12.5 Volt
- 5Hz to 20 kHz
- up to 170 dB Peak
- pre-polarized
Application:
- Airbag Bang
- Explosion analysis
- Explosion detection
- Shooting noise
- Gunshot sound
- Engine noise – Aerospace industry
microphone for
high sound pressure levels
60 dBA - 186 dB

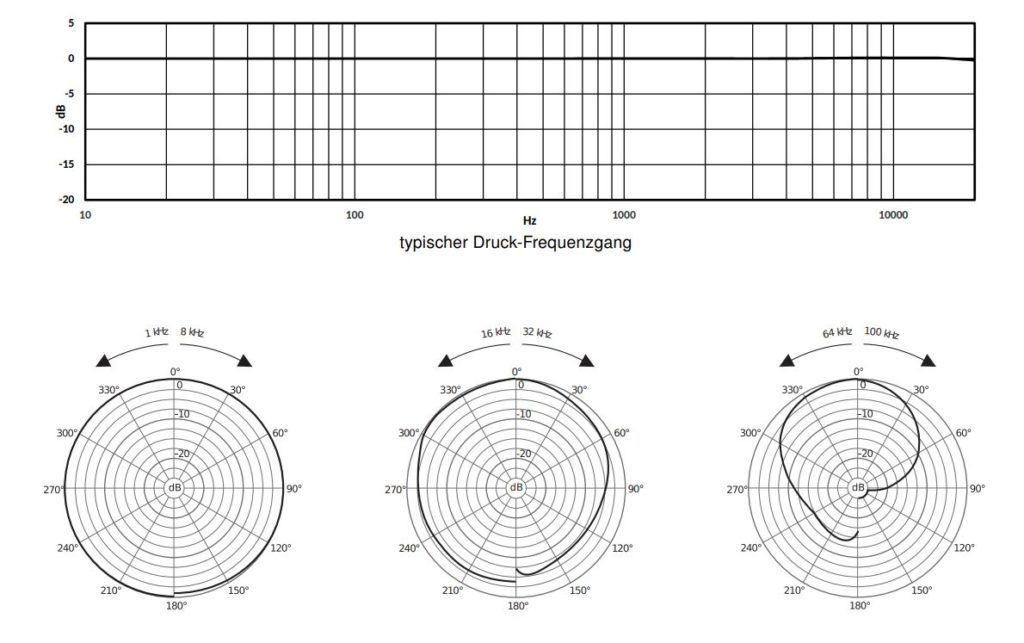

The 1/4″ microphone set consisting of the MV310 and the microphone capsule MK342 E has a constant pressure curve and is therefore optimized for correct acoustic measurements at interfaces or in acoustic couplers with extreme sound pressure levels.
MK342 E + MV310 set
1/4" IEPE microphone with
constant pressure frequency response
The static air pressure is compensated by means of a capillary to the preamplifier (back-ventilated) or by means of a side capillary (side-ventilated).
The membrane is protected against mechanical
damage by a protective grid.
- WS3P according to IEC 61094-4
- 3.5Hz to 70kHz
- 60dB(A) to 186dB
- pre-polarized
Application:
- Airbag Bang
- Explosion analysis
- Explosion detection
- Shooting noise
- Gunshot sound
Model | MV310 Preamplifier |
|---|---|
Frequency Response
(re. 250 Hz) | 20 Hz ~ 100 kHz |
Gain @ 1 kHz | 0 dB |
Intrinsic Noise (20Hz ~ 20kHz) | <4.7 μV A-weighting |
Distortion(THD) @1kHz
1 V | <0.1% |
Output Impedance | ＜100Ω |
Max. Output Voltage | 8.2 V RMS |
IEPE Power Voltage | 24 V ~ 30 V |
IEPE Current | 2 mA ~ 10 mA |
Polarization Voltage | 0 V |
Dimensions | Ø 6.3 x 57.8 mm |
Weight | <6 g (cable not included) |
Operating Temperature | -20°C ~ + 100°C |
Humidity | 25 %～ 90 %(RH) |
Atmospheric Pressure | 65 kPa～108 kPa |
Connector Type | MALCO microdot, 10-32 UNF-2A |
Thread for Microphone Capsule Mounting | 5.7 mm-60 UNS |
Model | MK 342 E microphone capsule WS3P according to IEC 61094-4 |
|---|---|
Diameter | 1/4″ |
Frequency Range | 3.5 Hz ~ 70 kHz |
Responce Type | Capacitive pressure transducer |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 0.25 mV/Pa (± 3 dB) |
Capacitance at 1 kHz | 4.7 pF |
Max. SPL | 186 dB peak |
Intrinsinc Noise Level | 60 dB (A) |
Operating Temperature Range | -20 °C ～ +100 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear or side |
Outer Dimensions | Ф 7 mm x 9.7 mm |
Weight | 2 gram |
Model | iSV1611 USB Microphone Preamplifier |
|---|---|
Signal Amplitude ref. 50mV @ 1kHz Frequency Response Frequency Sampling 192 kHz |
1Hz~20Hz, Error <3.0dB 20Hz~20kHz, Error<0.3dB 20kHz~80kHz, Error<3.0dB |
Electrical signal noise background | Ch.1 (<13dBA, <26dBZ) Ch.2 (<50dBA, <63dBZ) |
THD
Input 1kHz, 50mV, A weighting | <0.1%
|
Overload Indicator 1kHz (THD<3%) | Ch.1 (>101.9dB) Ch.2 (>140dB) |
Amplitude accuracy Input 31.6mV, 1kHz, 90.0dB | Error <0.2dB
|
Dimensions 1/2″ Outer diameter of protector cover | Ф 20 × 165 mm φ 13.2mm |
Weight | <96 g (cable not included) |
Operating Temperature | -20°C ~ + 60°C |
Humidity | 25 %～ 90 %(RH) |
Atmospheric Pressure | 65 kPa～108 kPa |
Connector Type | USB2.0, |
Microphone Thread | 11.7 mm-60 UNS |
