Modal Test Software NVH-Imp offers all functions for experimental modal analysis.

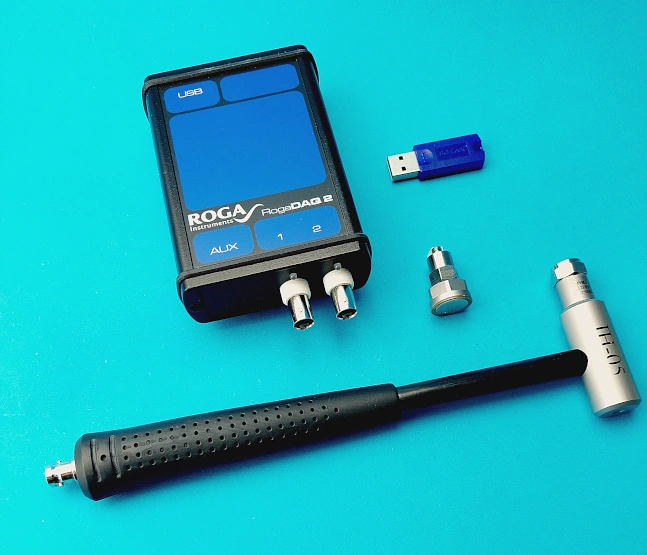

The YouTube presentation shows you how to work with an impulse hammer and a non-contact sensor.
It is realized with a two channel measurement data acquisition.
Our modal test software supports measurement data acquisition from different manufacturers up to 16 channels.
- Price: 1500 €
NVH-Imp Function Overview
REALTIME DATA PROCESSING | GRAPHICS AND VISUALISATION |
|---|---|
User interface | Configurable graph screens |
Time domain | Recorder (1 to 16 Ch, real-time autoscaling) Scope (trigger, persistence, envelope), Analog/digital meter, tabular display, overload indicator |
Multi domain | XY recorder (Lissajous), 2D graph, Orbit graph FRF plot (amplitude/phase/real/imaginary vs frequency) |
Application specific | FRF geometry, Modal circle, Rotor balancer, Harmonic FFT, Vector scope Auto-generating of displays with typical application setup |
DATA IMPORT | ASCII *.txt WAV *.wav MP3 *.mp3 Stiegele Datasystems MicroEdition, *.mdf TEAC TAFFmat Format, *.hdr, *.dat |
DATA EXPORT | ASCII *.txt Excel *.csv |
FILTERING | |
IIR | Low pass/high pass/band pass/ 2nd to 6th order, Butterworth |
STATISTICS | |
Calculation base | Time based |
Types | RMS, Average, Peak-Peak |
Data range | Running, Triggered, Start-Stop |
REFERENCE CURVES | |
Types | time, value, dual-value, vector, XY, frequency domain with interpolation |
TIME DOMAIN | ANALYSIS |
Integration/Derivation | single/double with adjustable filter, automatic unit conversion (e.g. acceleration to velocity to displacement) FFT |
FFT ANALYSER | |
General | multiple independent FFT analyzers at the same time |
Amplitude types | amplitude FFT (Ampl, RMS, Power, PSD, RMS SD), Complex FFT (Real/Imag/Ampl/Phase) |
Windowing | Hanning / Hamming |
Window overlap | 0, 10, 25, 50, 66, 75, 90 % |
Triggered FFT | triggered time-range with pre- and post-trigger as input, auto calculation of window resolution, averaging of triggered FFT‘s, e.g. for bump – impulse hammer test application |
DC cut off | 0,5 Hz |
FFT block size | 26, 51, 101, 201, 401, 801, 1601, 3201, 6401, 12801, 25601 |
Acoustic weighting | A, B, C, Lin (Z) |
Octave | 1/3, type; Lin/A/B/C weighting, Lin/Pk avg with overlap |
Visualization | amplitude axis with real-time autoscaling: Lin/log/0dB/reference dB/Sound(A) |
Post processing | possible to add/change all calculations offline on the stored raw data |
Spectrum markers | Free |
MODAL TEST | |
Impact hammer method | roving hammer/roving accelerometer moving through points, averaging of multiple hits, double hit rejection, rejecting of hits (action buttons), grouping of sensors, adjustable excitation, and response window |
Free-run mode | Function generator (Apollo Series) for shaker excitation (swept sine, burst, chirp…) Hanning/Hamming windowing with overlap 0, 25, 50, 66, 75 % operating deflection shapes (Spectral ODS) |
FRF | Receptance, Effective Mass, Mobility, Impedance, Dynamic Compliance, Dynamic Stiffness, Transmissibility |
Modal Parameters | Mode Indicator Function (MIF), extract exact frequencies and damping factors with Modal circle fit (Option) |
Post processing | FRF from stored raw data, in free-run mode |
Geometry | Geometry editor, load, save, import models in UFF (UNV) format (Option) |
Animation | movement of nodes for selected frequency (place marker), change speed and amplitude (Option) |
Data export | Complex data (Real/Imag/Ampl/Phase) in UFF (UNV) format or any other, see Software Export section |
