IEPE Interface 16-XLR-NVH

16-XLR-NVH

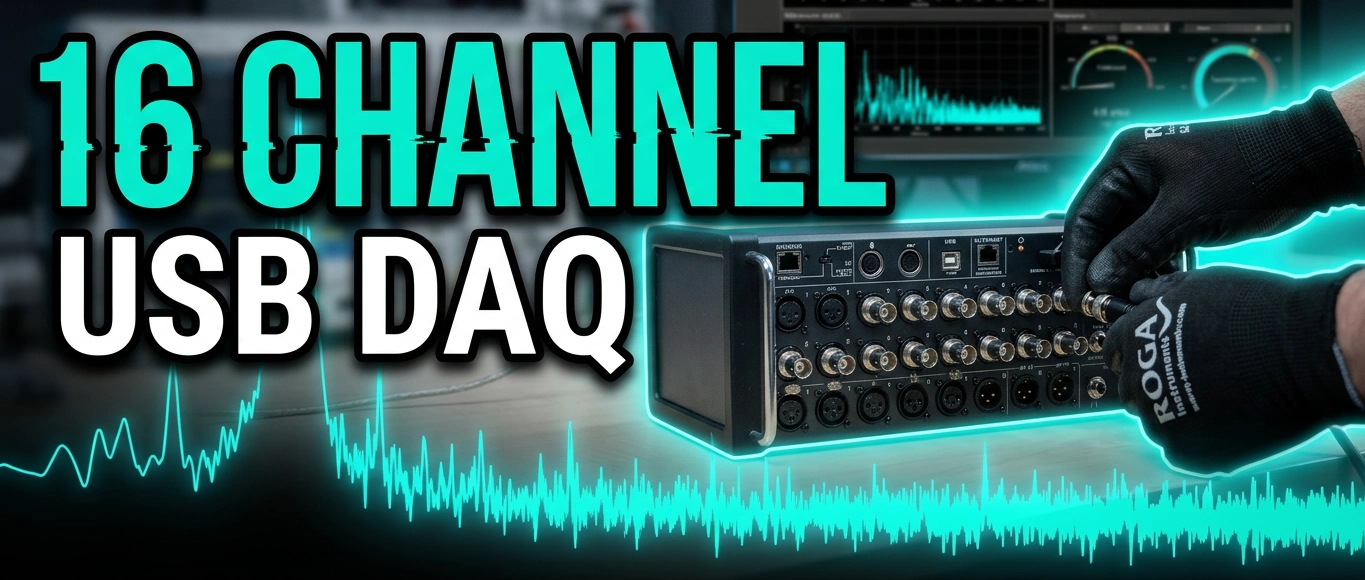

IEPE interface 16-XLR-NVH is a high-precision portable data acquisition system.

16 simultaneously sampled channels with 24-bit resolution precisely measure all IEPE sensor signals with frequencies from 10 Hz to 20 kHz.

The measuring range with 6.7 volt peak is optimized for the measuring range of IEPE sensors at a bias voltage of 12.5 volts.

The 16-XLR-NVH comes with NVH Analyzer Pro software and is a
perfect measurement and analysis solution for the professional
NVH engineer.

The 16-XLR-NVH system is an affordable investment as it combines the  functions of the measurement data recorder and post-process analysis with real-time analysis functions in one device.

Features:

  • NVH Analyzer Pro Software
  • Flexible IEPE channel count up to 16 channel + 2 RPM
  • SPL measurements (A, B, C, Z weighting) S, F, I – Leq
  • ISO 9614 sound power measurements
  • Machinery vibration measurements
  • Noise and vibration monitoring
  • Human vibration measurements
  • Quality assurance EOL
  • Engineering services
  • Environmental noise
  • Impulse Hammer Test
  • Structural analysis
  • Frequency analysis
  • Order analysis
Technical Data
16 Analog inputs
BNC IEPE Input
2 Line Input / Tacho
±6.7 Volt Peak
Resolution
24 bit Sigma Delta ADC
Frequency range
Dynamic range @ 48 kHz
A-weighted
Unweighted
10 Hz to 22 kHz
114 dB
106 dB
103 dB
Input voltage range
±6.7 Volt Peak
Input coupling
AC/IEPE selectable
IEPE Sensor Supply
4 mA @ 24 Volt
EPE Sensor input impedance
5 kΩ
A/D dynamic range, IEPE to converter (typical)
109 dB
Power
Switch-mode power supply Autorange
100-240 V, (50/60 Hz)
Power consumption
30 W
Physical
Standard operating temperature range
5°C – 40°C
(41°F – 104°F)
Dimensions
333 x 157 x 95 mm
(13.1 x 6.2 x 3.7 in)
Weight
3.9 kg

NVH Analysis – NVH Analyzer Pro

Function Overview

REALTIME DATA PROCESSING
GRAPHICS AND VISUALISATION
User interface
Configurable graph screens
Time domain
Recorder (1 to 16 Ch, real-time autoscaling)
Scope (trigger, persistence, envelope), Analog/digital meter, tabular display, overload indicator
Multi domain
XY recorder (Lissajous), 2D graph, Orbit graph
FRF plot (amplitude/phase/real/imaginary vs frequency)
Application specific
FRF geometry, Modal circle, Rotor balancer, Harmonic FFT, Vector scope
Auto-generating of displays with typical application setup
DATA IMPORT
ASCII *.txt
WAV *.wav
MP3 *.mp3
Stiegele Datasystems MicroEdition, *.mdf
TEAC TAFFmat Format, *.hdr, *.dat
DATA EXPORT
ASCII *.txt
Excel *.csv
WAV *.wav
FILTERING
IIR
Low pass/high pass/band pass/ 2nd to 6th order, Butterworth
STATISTICS
Calculation base
Time based
Types
RMS, Average, Peak-Peak
Data range
Running, Triggered, Start-Stop
REFERENCE CURVES
Types
time, value, dual-value, vector, XY, frequency domain with interpolation
TIME DOMAIN
ANALYSIS
Integration/Derivation
single/double with adjustable filter, automatic unit conversion
(e.g. acceleration to velocity to displacement) FFT
FFT ANALYSER
General
multiple independent FFT analyzers at the same time
Amplitude types
amplitude FFT (Ampl, RMS, Power, PSD, RMS SD), Complex FFT (Real/Imag/Ampl/Phase)
Windowing
Hanning / Hamming
Window overlap
0, 10, 25, 50, 66, 75, 90 %
Triggered FFT
triggered time-range with pre- and post-trigger as input, auto calculation of window resolution, averaging of triggered FFT‘s, e.g. for bump – impulse hammer test application
DC cut off
0,5 Hz
FFT block size
26, 51, 101, 201, 401, 801, 1601, 3201, 6401, 12801, 25601
Acoustic weighting
A, B, C, Lin (Z)
Octave
1/3, type; Lin/A/B/C weighting, Lin/Pk avg with overlap
Visualization
amplitude axis with real-time autoscaling: Lin/log/0dB/reference dB/Sound(A)
Post processing
possible to add/change all calculations offline on the stored raw data
Spectrum markers
Free
ORDER TRACKING

Frequency source

Counter: optical tacho, proximity, pick-up probe (1 pulse/rev), optical strip tape probe
(with bl/wh tape, algorithm for determining number of pulses),
1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero
RPM channel: any analog speed channel, virtual (synthesized RPM channel, also in post-processing) Analog pulses: analog signal (e.g. 60-2) / analog tacho + angle sensor math
Input Ch. for analysis
any analog input channel, e.g. IEPE accelerometer, microphone, etc…
Visualization
3D graph, Order and Frequency spectrum, Waterfall FFT real time extraction of single spectral lines of matrix Orbit plot, XY recorder, Bode plot, Nyquist plot of any order, any signal vs RPM
Calculation criteria
Runup / Coast down / Both directions with RPM limits and Delta RPM and/or Delta Time
Order FFT
from 8 to 256 orders, resolution from 1 to 1/64
Harmonics
extract overall RMS and amplitudes/phases/Real/Imag of selectable orders (from sub-orders e.g. 0.1x, 1x, 2x, 3x to max order) in Time domain & RPM domain
Post processing
possible to add/change all calculations offline on the stored raw data
Data export
Complex data (Real/Imag/Ampl/Phase) in any format, see Software Export section
TORSIONAL VIBRATION
General
high precision rotational and torsional vibration and slippage measurement, by use of 2 rotary encoders
Frequency source
optical strip tape probe (with bl/wh tape, algorithm for determining number of pulses), 1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero
Angle accuracy
up to 0,00075° at 10 000 rpm
Angle resolution
up to 0,06° at 10 000 rpm
Features
Rotational DC filter (0,1 to 10 Hz), compensation of uncentered encoder mounting
Output
Rotational angle/velocity, Torsional angle/velocity
Visualization
angle based view, time domain
MODAL TEST
Impact hammer method
roving hammer/roving accelerometer moving through points, averaging of multiple hits, double hit rejection, rejecting of hits (action buttons), grouping of sensors, adjustable excitation, and response window
Free-run mode
Function generator (Apollo Series) for shaker excitation (swept sine, burst, chirp…) Hanning/Hamming windowing with overlap 0, 25, 50, 66, 75 % operating deflection shapes (Spectral ODS)
FRF
Receptance, Effective Mass, Mobility, Impedance, Dynamic Compliance, Dynamic Stiffness, Transmissibility
Modal Parameters
Mode Indicator Function (MIF), extract exact frequencies and damping factors with Modal circle fit (Option)
Post processing
FRF from stored raw data, in free-run mode
Geometry
Geometry editor, load, save, import models in UFF (UNV) format (Option)
Animation
movement of nodes for selected frequency (place marker), change speed and amplitude (Option)
Data export
Complex data (Real/Imag/Ampl/Phase) in UFF (UNV) format or any other, see Software Export section
HUMAN BODY VIBRATION
General
module for judging vibration levels for risk of damage to the human body
Supported types
Hand arm
Compliance
to ISO 8041, ISO 2631-1, ISO 2631-5, ISO 5349 standards
SOUND LEVEL
Frequency weighting
A, B, C, Lin (Z)
Time weighting
Fast, Slow, Impulse
Octave plot
1/3 Lin/A/B/C/ weighting, Lin/Pk avg with overlap
Supported standards
IEC 60651, IEC 60804, IEC 61672
Outputs
Sound pressure level, any combination of Frequency and Time weighting, Leq, Lpk, Lim, LE overall or on custom statistical rate, percentile levels (1, 5, 10, 50, 90, 95, 99 %)
More features
real-time narrow band FFT, frequency weighted raw channel
Calibration
auto-calibration of scaling factor with reference calibrator (1kHz, 94dB, 114 dB acc to IEC 60942:2003)
BALANCING
Application
for rigid rotor running below its resonance frequency, based on order tracking (amplitude & phase), single- and dual-plane
Supported tacho inputs
Counter: optical tacho, proximity, pick-up probe (1 pulse/rev), optical strip tape probe (with bl/wh tape, algorithm for determining number of pulses), 1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero RPM channel: any analog speed channel, virtual (synthesized RPM channel, also in post-processing) Analog pulses: analog signal (e.g. 60-2) / analog tacho + angle sensor math alarm output if velocity exceeds predefined value weight splitting
Visualization
Vector polar plots of 1st order of all runs
Sequence
step-by-step guidance through procedure: initial run, trial mass run, correction mass run, repeat steps if needed
Features
x and y direction balancing at the same time, when using triaxial sensor
SOUNDPOWER
Standards
ISO 3741 (noise source in reverberation test room), ISO 3744 (engineering grade, free field over reflective plane), ISO 3745 (precision grade, anechoic or hemi anechoic room)
Geometries
Parallelepiped, Cylindric, Hemisphere, Sphere
Microphones
10 number of microphones; positions will be calculated according to entered geometry and size, floor / 1 wall / 2 wall setup
Measurement
Guided sequence, previous/next group (action buttons), background noise/sound measurement, with repeatability check, minimum measurement duration & level plausibility check and warnings, grouping of microphones
Octave
1/3 octave
Correction methods
C1 and C2 meteorological, K1 background noise and, K2 room noise (mean absorption grade, reverberation time, K2 editor)

IEPE Interface Special Offer

IEPE Interface for Linux DAQ – Windows DAQ

IEPE Sensor Interface Plug.n.DAQ Lite is a compact 2 channel IEPE data acquisition device for recording and analysis.

The IEPE DAQ features the widespread USB interface and requires no driver installation.

In addition to AC inputs, it directly supports IEPE-type sensors, such as microphones and accelerometers.

Three fixed input ranges of 1 volt, 5 volts or 10 volts allow an optimal sensor signal-to-noise ratio adaptation.

Filters on the input and instrumentation quality amplifiers ensure reliable data.

With a bandwidth up to 24 kHz per channel and simultaneous sampling Plug.n.DAQ Lite is highly flexible and may be used with all software packages supporting USB audio devices.

It comes in a rugged aluminum housing, prepared to go wherever the measurement job requires.

Supported operating systems: Android – Linux – Windows – macOS

Analog Input
2ch single ended BNC, IEPE
Impedance
100 kOhm
IEPE power fixed
21 Volt / 4mA
Fixed input range
1, 5 or 10 Volt Peak
Bandwidth
1 Hz to 24 kHz (-3dB)
10 Hz to 22 kHz (-0.5dB)
Sampling Frequency
48 kHz, – 44.1 kHz – 32 kHz – 22.05 kHz
16 kHz – 11.025 kHz
Absolute accuracy
1 % typical
Gain accuracy
0.2 % or better
Distortion
< 0.05%
SNR
90 dB or better
Pass band ripple
0.05 dB
Powered by USB Port
Power consumption < 1W
Temperature range
+/-0 to +50 °C
Dimensions
57 (w) x 104 (d) x 28 (h) mm
Weight
110 g
IEPE Interface Applications:

  • Impuls Hammer Test
  • Sound Test
  • Vibration analysis
  • Structural analysis
  • Modal analysis
  • Machine maintenance
