Plug.n.DAQ Lite
-
Price: 377 €
Price including shipping
The IEPE interface Plug.n.DAQ Lite provides a compact 2-channel IEPE sensor data acquisition device for recording and analysis.
The IEPE interface DAQ is equipped with a widely used USB interface so that no additional driver installation is required.
Furthermore, the device is able to directly support IEPE sensors, such as microphones and accelerometers, in addition to AC inputs.
Three fixed input ranges of 1 volt, 5 volt or 10 volt allow optimum adjustment of the sensor signal-to-noise ratio.
The use of filters on the input and instrumentation quality amplifiers ensures the reliability of the data.
The bandwidth of up to 24 kHz per channel and simultaneous sampling make the Plug.n.DAQ Lite extremely flexible and allows it to be used with all software packages that support USB audio devices.
Supported operating systems:
Android – Linux – Windows – macOS
PnDL-DIN
-
Price: 455 €
Price including shipping
Analog Input | 2ch single ended BNC, IEPE |
|---|---|
Impedance | 100 kOhm |
IEPE power fixed | 21 Volt / 4mA |
Fixed input range | 0.1 V | 1 V | 5 V or 10 Volt Peak |
Bandwidth | 1 Hz to 24 kHz (-3dB) 10 Hz to 22 kHz (-0.5dB) |
Sampling Frequency | 48 kHz, – 44.1 kHz – 32 kHz – 22.05 kHz 16 kHz – 11.025 kHz |
Absolute accuracy | 1 % typical |
Gain accuracy | 0.2 % or better |
Distortion | < 0.05% |
Dynamic range | > 100 dB（FFT-based) |
Pass band ripple | 0.05 dB |
Powered by USB Port | Power consumption < 1W |
Temperature range | +/-0 to +50 °C |
Dimensions | 57 (w) x 104 (d) x 28 (h) mm |
Weight | 110 g |
- IEPE DAQ on DIN Rail Mount
Supported operating systems: Android – Linux – Windows – macOS
Plug.n.DAQ Lite Software Compatibility: ARTA – Audacity – DASYLab – imc WAVE – LabVIEW – ME’Scope – NVH-IMP – NVH-FFT – Visual Analyzer – WavePad Sound Editor – Sigview – Soundcard Oscilloscope – SO Analyzer – SpectraPLUS-RT – SpectraPLUS-SC – Multi-Instrument
Plug.n.DAQ Lite settings with NVH-FFT
Today we will show you how to set up the Plug.n.DAQ Lite USB IEPE Sensor Interface in conjunction with the NVH Analyzer software.
For a correct display of the sensor amplitudes, the input measuring range of the USB measurement module and the sensitivity of the sensor must be known.
The sensitivity of the sensor can be taken from the calibration certificate of the sensor or it can be determined directly with a vibration calibrator.
Gun Test MIL STD 1474D
We would like to propose a method for measuring the noise level of a gun and the vibration at the gun at the same time.

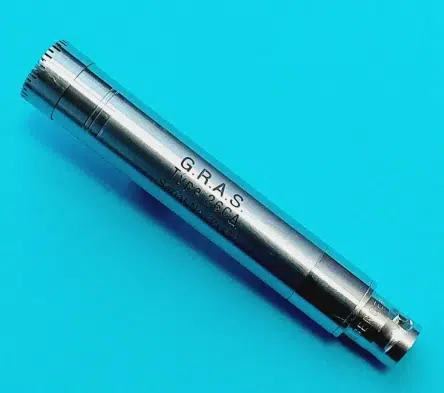

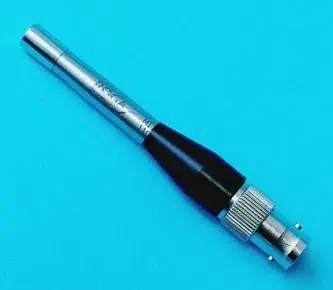

To achieve this, we suggest using measuring microphones and accelerometers with a low sensitivity to measure the high sound pressure levels and the high mechanical shock.
We are pleased to offer a measurement data acquisition system with an acceleration sensor, measurement microphone and software that is suitable for measuring in accordance with the MIL-STD-1474D standard.
- Impulse Hammer Test
- Sound Test
- Vibration analysis
- Structural analysis
- Modal analysis
- Machine maintenance
