Vibration Analyser with Scientific FFT Analyzer Software

RogaDAQ4 Set
A powerful solution for sound and vibration measurements

ROGA offers a wide range of data acquisition systems specifically designed for the monitoring and measurement of sound and vibration.

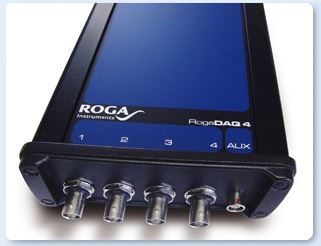

The RogaDAQ4 Set is a powerful package of 4-channel USB-based data acquisition hardware and comprehensive NVH-FFT software that enables accurate and efficient data analysis.

In combination with a standard notebook and a triaxial accelerometer, the RogaDAQ4 Set becomes a portable vibration analysis laboratory with integrated tools for signal processing and visualisation of sound and vibration data.

RogaDAQ4 Set

Vibration Analyzer

Technical Details

Analog Input
4 channels DC / AC / IEPE
Frequency range
DC Hz to 80 kHz
Frequency range with IEPE
0.3 Hz to 80 kHz
Input voltage range
±10 V / ±1 V selectable
Input coupling
DC/AC/IEPE selectable
Sensor supply
4 mA @ 24 V
Input impedance
1MΩ, 20pF
Overvoltage protection
±40 V
Anti-aliasing filter
800 dB/octave
Dynamic range
> 123 dB
Amplitude accuracy
0.10%
Resolution
24 bits
Sample Rate in kHz
8/16/24/32/48/96/192
Size
80 x 118 x 64 mm
Weight
400 g
Operating temperature range
0 to 55 °C
Power Supply
5 Volt @ 1.5 Ampere

Scope of delivery:

  • RogaDAQ4
  • NVH-FFT Software

Applications

  • Impact hammer test
  • Structure analysis
  • Modal analysis
  • Housing vibration
  • Shaft vibration
  • Balancing condition
  • Ultrasound measurement
  • Shock measurement
  • Building vibration
  • Bridge vibrations
  • Machine maintenance
  • Building acoustics and building vibration analysis
  • Process monitoring
  • End of line test

NVH Analyzer RogaDAQ4 Getting Started

The NVH Analyzer and RogaDAQ4 are powerful tools for measuring and analyzing noise, vibration, and harshness in various applications. Rogá, the developer of these tools, provides a getting started presentation to help users better understand their capabilities and functions.

The presentation covers the basic features, setup requirements, and usage of the NVH Analyzer and RogaDAQ4. Additionally, the video demonstrates the steps involved in configuring and using these tools for successful data acquisition and analysis.

Whether it is for automotive, aerospace, or any other application that requires the measurement and analysis of noise, vibration, and harshness, the NVH Analyzer and RogaDAQ4 can provide users with accurate and detailed data to optimize their products and processes.

Model
NVH Analyzer Pro
Price
NVH-Imp

Modal Test Software offers all functions for experimental modal analysis.

1800 $
NVH-FFT

NVH analysis software with FFT signal analysis, order analysis, acoustics, sound level and sound power.

1800 $
NVH-ODS

The modal variables eigenvector, natural frequency and damping are determined in offline mode.
Transfer functions and geometry data can be imported in UFF format.

1800 $
Additional – License

50% of the standard purchase price will be charged for each additional licence of the software

900 $

After the purchase there are no further licence and maintenance fees for NVH Analyzer Pro and its derivatives NVH-FFT, NVH-IMP and NVH-ODS.

Rotor dynamics with NVH-FFT

Impulse hammer test with NVH-IMP

NVH Analysis – NVH Analyzer Pro

Function Overview

REALTIME DATA PROCESSING
GRAPHICS AND VISUALISATION
User interface
Configurable graph screens
Time domain
Recorder (1 to 16 Ch, real-time autoscaling)
Scope (trigger, persistence, envelope), Analog/digital meter, tabular display, overload indicator
Multi domain
XY recorder (Lissajous), 2D graph, Orbit graph
FRF plot (amplitude/phase/real/imaginary vs frequency)
Application specific
FRF geometry, Modal circle, Rotor balancer, Harmonic FFT, Vector scope
Auto-generating of displays with typical application setup
DATA IMPORT
ASCII *.txt
WAV *.wav
MP3 *.mp3
Stiegele Datasystems MicroEdition, *.mdf
TEAC TAFFmat Format, *.hdr, *.dat
DATA EXPORT
ASCII *.txt
Excel *.csv
WAV *.wav
FILTERING
IIR
Low pass/high pass/band pass/ 2nd to 6th order, Butterworth
STATISTICS
Calculation base
Time based
Types
RMS, Average, Peak-Peak
Data range
Running, Triggered, Start-Stop
REFERENCE CURVES
Types
time, value, dual-value, vector, XY, frequency domain with interpolation
TIME DOMAIN
ANALYSIS
Integration/Derivation
single/double with adjustable filter, automatic unit conversion
(e.g. acceleration to velocity to displacement) FFT
FFT ANALYSER
General
multiple independent FFT analyzers at the same time
Amplitude types
amplitude FFT (Ampl, RMS, Power, PSD, RMS SD), Complex FFT (Real/Imag/Ampl/Phase)
Windowing
Hanning / Hamming
Window overlap
0, 10, 25, 50, 66, 75, 90 %
Triggered FFT
triggered time-range with pre- and post-trigger as input, auto calculation of window resolution, averaging of triggered FFT‘s, e.g. for bump – impulse hammer test application
DC cut off
0,5 Hz
FFT block size
26, 51, 101, 201, 401, 801, 1601, 3201, 6401, 12801, 25601
Acoustic weighting
A, B, C, Lin (Z)
Octave
1/3, type; Lin/A/B/C weighting, Lin/Pk avg with overlap
Visualization
amplitude axis with real-time autoscaling: Lin/log/0dB/reference dB/Sound(A)
Post processing
possible to add/change all calculations offline on the stored raw data
Spectrum markers
Free
ORDER TRACKING

Frequency source

Counter: optical tacho, proximity, pick-up probe (1 pulse/rev), optical strip tape probe
(with bl/wh tape, algorithm for determining number of pulses),
1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero
RPM channel: any analog speed channel, virtual (synthesized RPM channel, also in post-processing) Analog pulses: analog signal (e.g. 60-2) / analog tacho + angle sensor math
Input Ch. for analysis
any analog input channel, e.g. IEPE accelerometer, microphone, etc…
Visualization
3D graph, Order and Frequency spectrum, Waterfall FFT real time extraction of single spectral lines of matrix Orbit plot, XY recorder, Bode plot, Nyquist plot of any order, any signal vs RPM
Calculation criteria
Runup / Coast down / Both directions with RPM limits and Delta RPM and/or Delta Time
Order FFT
from 8 to 256 orders, resolution from 1 to 1/64
Harmonics
extract overall RMS and amplitudes/phases/Real/Imag of selectable orders (from sub-orders e.g. 0.1x, 1x, 2x, 3x to max order) in Time domain & RPM domain
Post processing
possible to add/change all calculations offline on the stored raw data
Data export
Complex data (Real/Imag/Ampl/Phase) in any format, see Software Export section
TORSIONAL VIBRATION
General
high precision rotational and torsional vibration and slippage measurement, by use of 2 rotary encoders
Frequency source
optical strip tape probe (with bl/wh tape, algorithm for determining number of pulses), 1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero
Angle accuracy
up to 0,00075° at 10 000 rpm
Angle resolution
up to 0,06° at 10 000 rpm
Features
Rotational DC filter (0,1 to 10 Hz), compensation of uncentered encoder mounting
Output
Rotational angle/velocity, Torsional angle/velocity
Visualization
angle based view, time domain
MODAL TEST
Impact hammer method
roving hammer/roving accelerometer moving through points, averaging of multiple hits, double hit rejection, rejecting of hits (action buttons), grouping of sensors, adjustable excitation, and response window
Free-run mode
Function generator (Apollo Series) for shaker excitation (swept sine, burst, chirp…) Hanning/Hamming windowing with overlap 0, 25, 50, 66, 75 % operating deflection shapes (Spectral ODS)
FRF
Receptance, Effective Mass, Mobility, Impedance, Dynamic Compliance, Dynamic Stiffness, Transmissibility
Modal Parameters
Mode Indicator Function (MIF), extract exact frequencies and damping factors with Modal circle fit (Option)
Post processing
FRF from stored raw data, in free-run mode
Geometry
Geometry editor, load, save, import models in UFF (UNV) format (Option)
Animation
movement of nodes for selected frequency (place marker), change speed and amplitude (Option)
Data export
Complex data (Real/Imag/Ampl/Phase) in UFF (UNV) format or any other, see Software Export section
HUMAN BODY VIBRATION
General
module for judging vibration levels for risk of damage to the human body
Supported types
Hand arm
Compliance
to ISO 8041, ISO 2631-1, ISO 2631-5, ISO 5349 standards
SOUND LEVEL
Frequency weighting
A, B, C, Lin (Z)
Time weighting
Fast, Slow, Impulse
Octave plot
1/3 Lin/A/B/C/ weighting, Lin/Pk avg with overlap
Supported standards
IEC 60651, IEC 60804, IEC 61672
Outputs
Sound pressure level, any combination of Frequency and Time weighting, Leq, Lpk, Lim, LE overall or on custom statistical rate, percentile levels (1, 5, 10, 50, 90, 95, 99 %)
More features
real-time narrow band FFT, frequency weighted raw channel
Calibration
auto-calibration of scaling factor with reference calibrator (1kHz, 94dB, 114 dB acc to IEC 60942:2003)
BALANCING
Application
for rigid rotor running below its resonance frequency, based on order tracking (amplitude & phase), single- and dual-plane
Supported tacho inputs
Counter: optical tacho, proximity, pick-up probe (1 pulse/rev), optical strip tape probe (with bl/wh tape, algorithm for determining number of pulses), 1-, 2-, 3- tracks encoder, gear tooth with missing teeth (e.g. 60-2), CDM, CDM with zero RPM channel: any analog speed channel, virtual (synthesized RPM channel, also in post-processing) Analog pulses: analog signal (e.g. 60-2) / analog tacho + angle sensor math alarm output if velocity exceeds predefined value weight splitting
Visualization
Vector polar plots of 1st order of all runs
Sequence
step-by-step guidance through procedure: initial run, trial mass run, correction mass run, repeat steps if needed
Features
x and y direction balancing at the same time, when using triaxial sensor
SOUNDPOWER
Standards
ISO 3741 (noise source in reverberation test room), ISO 3744 (engineering grade, free field over reflective plane), ISO 3745 (precision grade, anechoic or hemi anechoic room)
Geometries
Parallelepiped, Cylindric, Hemisphere, Sphere
Microphones
10 number of microphones; positions will be calculated according to entered geometry and size, floor / 1 wall / 2 wall setup
Measurement
Guided sequence, previous/next group (action buttons), background noise/sound measurement, with repeatability check, minimum measurement duration & level plausibility check and warnings, grouping of microphones
Octave
1/3 octave
Correction methods
C1 and C2 meteorological, K1 background noise and, K2 room noise (mean absorption grade, reverberation time, K2 editor)
