PCB Triaxial Accelerometer - ICP® Triaxial Accelerometer - IEPE Triaxial Vibration Sensor

Triaxial accelerometers are used in vibration measurement applications to detect and measure vibration levels in three perpendicular directions.

If you plan to use a triaxial accelerometer to measure vibration, it is recommended to attach it to the surface under investigation using a suitable mounting device and connect it to a vibration analyzer or data logger.

You can then measure vibration levels in three axes—X, Y, and Z—and analyze the data to identify any patterns or anomalies.

Triaxial accelerometers can be extremely beneficial for anyone involved in machine maintenance, structural inspection, or vibration analysis. They provide valuable insight into the health of the monitored systems.

KS813B/01

Triaxial Accelerometer
  • Price: 1745 €

Triaxial Vibration Sensor - Rugged IP67
Industrial Grade Design

Features:

  • Output IEPE
  • Voltage sensitivity 100 mV/g
  • Frequency response 0.2 Hz to 10000 Hz
  • Residual noise; wide band; RMS <300 (0,2 – 20000 Hz) μg
  • Rugged industrial design
  • Protection grade IP67
  • Insulated base against ground loops
  • Trough hole for easy attachment

Delivery version with accessories kit KS813B/01

  • 088-B718G-B711-5: Cable for IEPE sensors; 5 m; Binder 718; 4 pins; female. to Binder 711; male; 80 °C; D5
  • BNC – Splitter Cable – 034-B711f-BNC: Adapter Binder 711; 0,5 m; 4 pin; female. to 3 x BNC; male; 80 °C
  • 408: Rare earth magnetic base; M4; D30; 120 °C
  • Certificate of calibration
  • Transport case
Triaxial accelerometer
  • Price: 1620 €

141A10x – 10 mV/g or 100 mV/g

Features:

  • Small dimensions
  • Excellent phase response
  • High resolution
  • Low temperature coefficient
  • Well suited for modal and structural analysis
  • Two sensitivity variants (10 or 100 mV/g)

Delivery with sensor cable 5 meter

  • 141A10x Triaxial accelerometer
  • Connection cable 1/4-28(4-Pin)/3-BNC (5 Meter)
  • Certificate of calibration
Triaxial accelerometer
  • Price: 1820 €

KS903B10x/01 – 10 or 100 mV/g

Features:

  • Small dimensions
  • Excellent phase response
    High resolution
  • Low temperature coefficient
  • Contains digital memory for sensor data (TEDS according to IEEE 1451.4; Template 25 m. DS2431)
  • Well suited for modal and structural analysis
  • Two sensitivity variants (10 or 100 mV/g)

Delivery with accessory case:KS903B10x/01:

  • 091-CMR-B711-3: Cable for IEPE sensors; 3 m; 1/4″-28; 4-pin on Binder 711; mnl.; 120 °C; D2.1
  • 034-B711f-BNC: Adapter Binder 711; 0.5 m; 4-pin to wbl.; 3 x BNC; mnl.; 80 °C
  • 708: Rare earth holding magnet; M5; SW15; 120 °C
  • 029: Adhesive insulating flange; M5; D15; >250 °C
  • 003: Threaded screw; M5 x 8
Seismometer Geophone
  • Price: 4388 €

3D Seismometer

A unique and highly practical feature of the 902xxx series seismometers is their ICP sensor interface. This allows the sensors to be used directly with any measuring instrument with an ICP input (4 mA at 24 V); no additional power supply is required.

The ICP power supply and the requirements of DIN 45669 determine the seismometer’s frequency response. The dynamic range is extremely wide (> 130 dB).

Features
● For vibration monitoring according to DIN 45669
● 1 Hz – 315 Hz
● Sensitivity 30 V/m/s
● Civil engineering
● Construction site monitoring
● Building monitoring
● Bridge monitoring
● Explosion detection
● Tunnel and dam monitoring
● Earthquake detection
● VC criteria in nanotechnology facilities
● Including DAkkS calibration

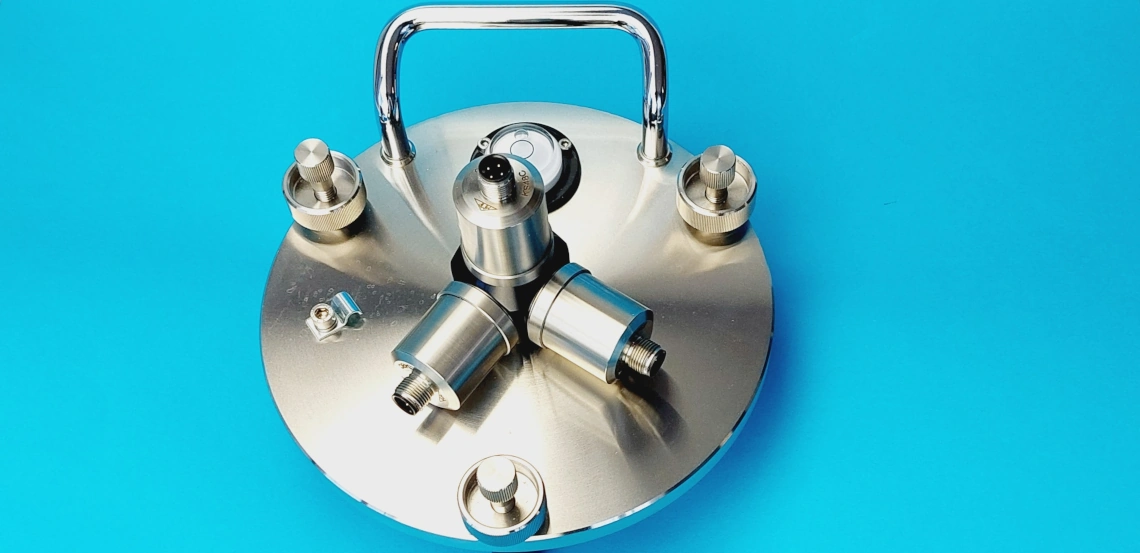

Triaxial Seismic Accelerometer Set

triaxial low frequency accelerometer
  • Price: 3030 €

KS48C-3 + 729 Tripod floor plate Set

The triaxial seismic accelerometer set is designed for measuring low-frequency vibrations. Its high sensitivity makes it ideal for a wide range of applications.

The highly sensitive accelerometer has a measuring range of 6g and can therefore detect even the smallest vibrations.

KS48C Specifications

  • High Sensitivity Accelerometer
  • Suitable for seismic measurements and structural investigations at low frequencies
  • Highly sensitive sensor system without internal amplification thus excellent resolution and lowest noise
  • Particularly good sensitivity/ mass ratio
  • IEPE voltage output
  • Frequency response 0.07 Hz – 4000 Hz (-3dB)
  • Sensitivity 1000 mV/g
  • Residual noise wide band; <14 µg RMS (0,5 – 10000 Hz)
  • Mass 165 grams
  • Measuring range ± 6 g
  • Robust design with M12 connector
  • Protection grade IP67

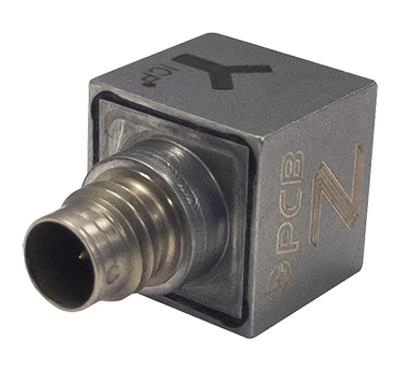

PCB Model 356B21

Triaxial Accelerometer ICP PCB
  • Price: 980 €

2nd HAND TRIAXIAL ACCELEROMETER

  • Triaxial ICP® accel.
  • 10 mV/g
  • 500 g
  • 2 to 7 kHz,
  • mini 4-pin conn.
  • Scope of delivery:
  • 356B21 Triaxial accelerometer
  • Certificate of calibration
  • Model 034K10 Cable 10FT Mini 4 Pin To (3) BNC (1)
  • PCB 356B21 Datasheet
