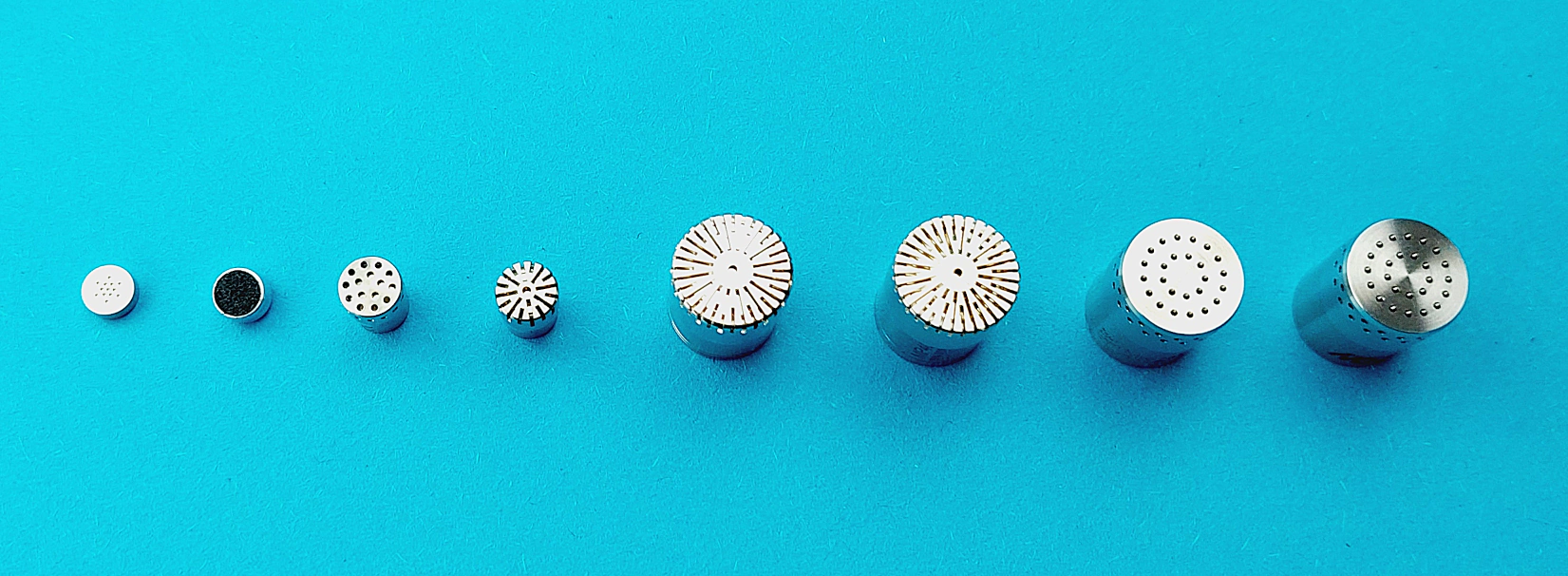

Here you will find pre-polarized measurement microphone capsules for industrial acoustics. All measurement microphone capsules have an omnidirectional polar pattern and are available in 1/4″ and 1/2″ sizes.
The MKS222E is suitable for infrasound measurements, while the MC14A, MC14B, and MK301E models are suitable for ultrasonic measurements.
For very high noise levels above 160 dB, we offer pressure field microphone capsules with the industry standard designation WS3P, types MK341E and MK342E.
All microphone capsules are supplied with a factory calibration certificate. A corresponding calibration file is available upon request.
MP30 | Class 1 | IEC 61094-4 | WS2F |
|---|---|
Diameter | 1/2″ |
Frequency Range 4 Hz – 20 kHz | 4 Hz – 10 Hz: ± 1.5 dB 10 Hz – 4 kHz: ± 0.5 dB 4 kHz – 20 kHz: ± 1.5 dB |
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 35 mV/Pa (± 1.5 dB) |
Capacitance at 250 Hz | 18 pF |
Maximum Sound Pressure Level | 146 dB |
Intrinsinc Noise Level | 16 dB (A) |
Operating Temperature Range | -20 °C ～ +60 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 13.2 mm x 16.0 mm |
Weight | 8.3 gram |
MP40 condenser microphone capsule
Class 1 | IEC 61094-4 | WS2F |
|---|---|
Diameter | 1/2″ |
Frequency Range 4 Hz – 20 kHz | 1.5 Hz – 3.5 Hz: ± 1.5 dB 3.5 Hz – 4 kHz: ± 0.5 dB 4 kHz – 20 kHz: ± 1.5 dB |
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 50 mV/Pa (± 3 dB) |
Capacitance at 250 Hz | 16 pF |
Maximum Sound Pressure Level | 146 dB |
Intrinsinc Noise Level | 16 dB (A) |
Operating Temperature Range | -20 °C ～ +60 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 13.2 mm x 17.2 mm |
Weight | 8.65 gram |
MK 255
IEC 61672 Class 1 | IEC 61094-4 | WS2F |
|---|---|
Diameter | 1/2″ |
Frequency Range |
3.5 Hz – 20 kHz
|
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 50 mV/Pa (± 2 dB) |
Capacitance at 250 Hz | 17 pF |
Maximum Sound Pressure Level | 149 dB |
Intrinsinc Noise Level | 15 dB (A) |
Operating Temperature Range | -50 °C ～ +100 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 13.2 mm x 16.4 mm |
Weight | 7.5 gram |
MP 231
Class 1 | IEC 61094-4 | WS2F |
|---|---|
Diameter | 1/2″ |
Frequency Range |
3 Hz – 20 kHz
|
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 40 mV/Pa (± 2 dB) |
Capacitance at 250 Hz | 16 pF |
Maximum Sound Pressure Level | 146 dB |
Intrinsinc Noise Level | 17 dB (A) |
Operating Temperature Range | -30 °C ～ +80 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 13.2 mm x 12.2 mm |
Weight | 8.7 gram |
MC14A
- Price: 485 €
Frequency Range 5 Hz to 75 kHz
MC14A Class 1 according to | IEC 61094-4 | WS3F |
|---|---|
Diameter | 1/4″ |
Frequency Range |
5 Hz – 75 kHz
|
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 4 mV/Pa (± 1.5 dB) |
Capacitance at 250 Hz | 4.5 pF |
Maximum Sound Pressure Level | 158 dB |
Intrinsinc Noise Level | 35 dB (A) |
Operating Temperature Range | -30 °C ～ +80 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 7 mm x 10.5 mm |
Weight | 2 gram |
MC14B
- Price: 645 €
Frequency Range 5 Hz to 100 kHz
MC14B Class 1 according to | IEC 61094-4 | WS3F |
|---|---|
Diameter | 1/4″ |
Frequency Range |
5 Hz – 100 kHz
|
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 3 mV/Pa (± 1.5 dB) |
Capacitance at 250 Hz | 4.5 pF |
Maximum Sound Pressure Level | 160 dB |
Intrinsinc Noise Level | 35 dB (A) |
Operating Temperature Range | -30 °C ～ +80 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 7 mm x 10.5 mm |
Weight | 2 gram |
MK 301 E
- Price: 850 €
Frequency Range 5 Hz to 100 kHz
MK 301 E Class 1 according to | IEC 61094-4 | WS3F |
|---|---|
Diameter | 1/4″ |
Frequency Range |
5 Hz – 100 kHz
|
Responce Type | Free field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 3.5 mV/Pa (± 2 dB) |
Capacitance at 250 Hz | 4.5 pF |
Maximum Sound Pressure Level | 168 dB |
Intrinsinc Noise Level | 35 dB (A) |
Operating Temperature Range | -50 °C ～ +100 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 7 mm x 10.5 mm |
Weight | 2 gram |
MK 342 E
- Price: 1155 €
High SPL Max. 186 dB
MK 342 E Class 1 according to | IEC 61094-4 | WS3P |
|---|---|
Diameter | 1/4″ |
Frequency Range |
5 Hz – 70 kHz
|
Responce Type | Pressure field |
Electrode Forming Voltage | 0 V |
Sensitivity (dB re 20 μPa) | 0.25 mV/Pa (± 2 dB) |
Capacitance at 250 Hz | 4.2 pF |
Maximum Sound Pressure Level | 186 dB |
Intrinsinc Noise Level | 60 dB (A) |
Operating Temperature Range | -50 °C ～ +100 °C |
Operating Humidity Range | 25 % ～ 90 %(RH) |
Temperature Characteristics | 0.01 dB/C° Maximum |
Humidity Characteristics | 0.001 %(RH) |
Aging Drift | 0.2 dB/Year |
Storage Temperature Range | -20 °C ～ +60 °C |
Storage Humidity Range | 25 % ～ 90 %(RH) |
Venting | Rear |
Outer Dimensions | Ф 7 mm x 10.5 mm |
Weight | 2 gram |
