Machine Monitoring – ISO 10816-1 based – Condition Monitoring on Rotating Machines – Vibration Switch

Analog Input	2ch single ended BNC, IEPE, AC, DC
Simultaneously sampling ADCs	2
ADC Resolution	24 Bit
Sampling rate	48 kHz
Channel 1 Measuring Range Channel 2 Measuring Range	±10 Volt ±30 Volt for 24 Volt Tacho Signal
AC- or DC-coupling	Selectable
IEPE sensor supply	4 mA – 24 Volt
Anti-Aliasing filter	Self adjusting
Accuracy	better ± 0,1 dB
Dynamic Range	124 dB（FFT-based)
THD	< 0,005%,
Frequency Response	DC – 24 kHz (± 0,05 dB)
With IEPE Supply	0.3 – 24 kHz (± 0,05 dB)
Powered by USB Port	Power consumption < 1W
Temperature range	0 to + 50 °C
Dimensions	85 (w) x 132 (d) x 35 (h) mm
Weight	230 g

Main functions

Live measurement

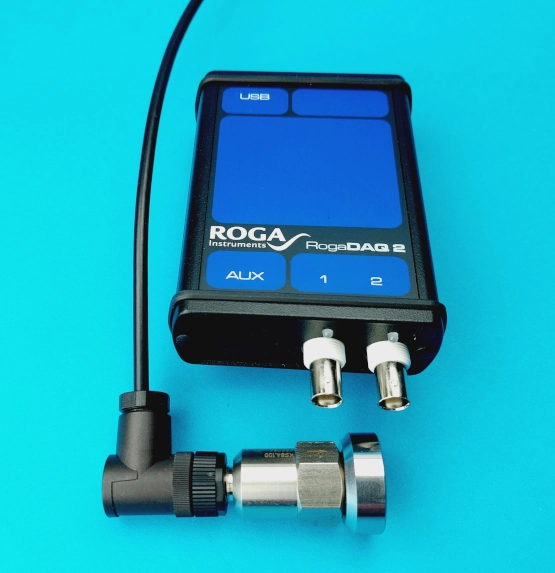

Direct sensor connection to RogaDAQ2 (2 channels). IEPE acceleration sensor on channel 1 and channel 2 RPM signal.
Real-time monitoring Time history, frequency spectrum (FFT/PSD) and characteristic values such as RMS, peak, crest factor, order analysis.
ISO 10816-1 based detection levels for deviations from normal conditions.
Traffic light system: green (OK), yellow (warning), red (anomaly).
Data export
The results can be exported as a TXT or CSV file for documentation, further processing, or integration into existing systems.
Data integration and customization for customer-specific databases and cloud systems.

Areas of application

Upgrade options

Vibration monitoring in time domain
Frequency selective monitoring in 10 user-defined frequency bands with individual limit values
Monitoring of vibration severity of rotating machinery according to DIN/ISO 20816-1
Monitoring of reciprocating machines according to DIN/ISO 10816-6 (VDI 2063)
Monitoring of pumps, compressors, centrifuges, fans, mixers etc.
Emergency shutdown or alarming at high vibration
Production quality control
